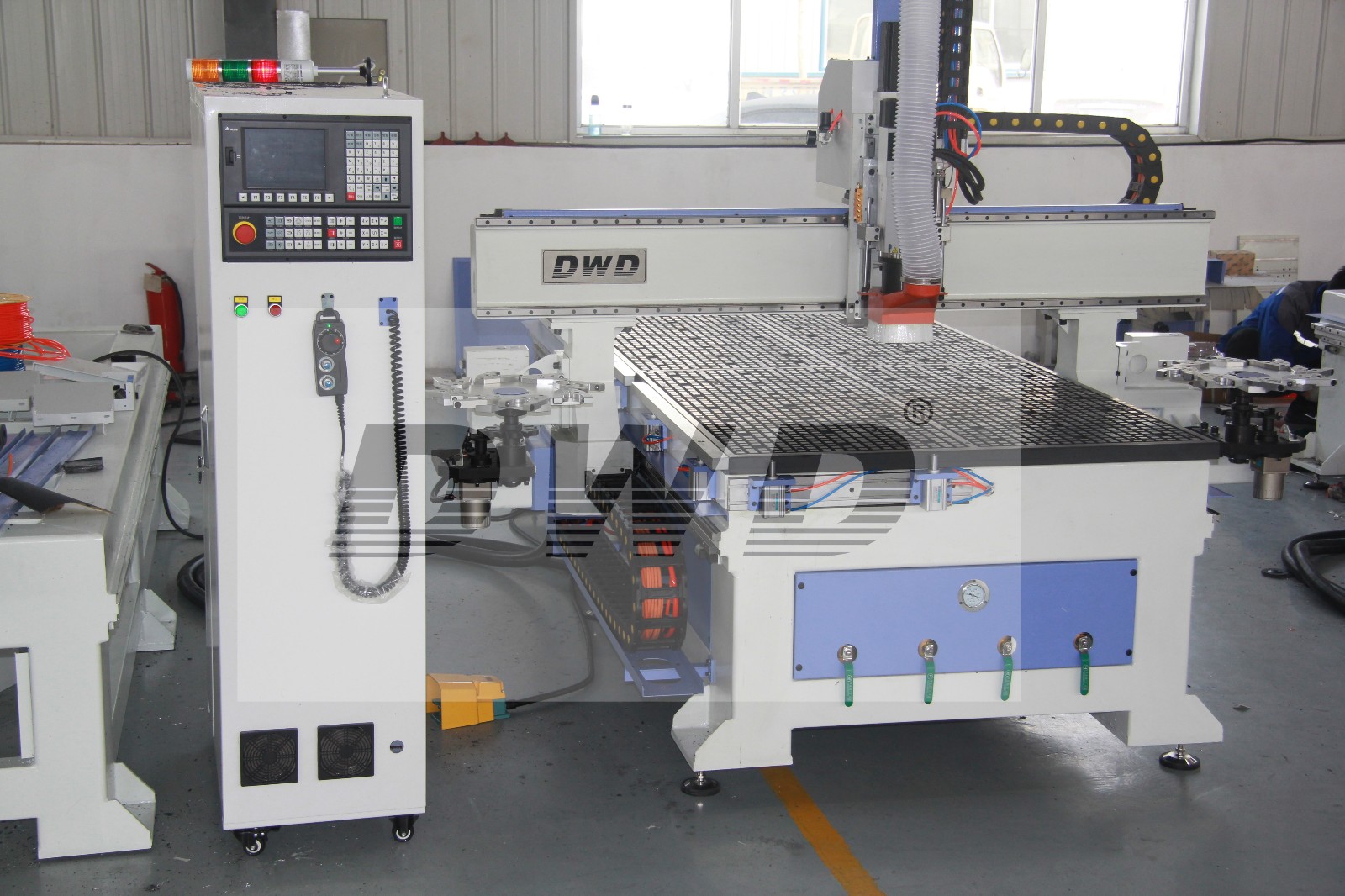

NA-48 CNC Machine Center

NA-48 CNC Machine Center

Product description

12 HP HSD high frequency automatic tool change spindle

Maintenance free brushless AC servo motors and drivers

Japan shimpo reducer coupled directly to servo motors

Pneumatic material alignment stops

4-zone double-layer nesting vacuum table

Hand-held pulse generator with rotary hand wheel controls the axis selected

Order immediatelyConsulting phone:+86-15621880878
  • Product details
  • Specification parameter

Optional parts:     HSD aggregate tool / HSD C axis / double tool magaizne / tool magazine with servo motor

Working size1220*2440*250mm
Table size1220*2440mm
Traveling size1320*2540*250mm
Spindle powerItaly HSD 9.0 kw / China brand CC 9.0kw spindle
Spindle speed0-24000mm/min
Driving systemYaskawa servo / Delta servo
ReducerJapan shimpo reducer
Operating systemSyntec / Delta / Osai
Max  rapid45m/min
Max working speed25m/min
TransmissionRack pinion and PMI linear rail for x y,ball screw for z
Table structuredouble-layer vacuum table

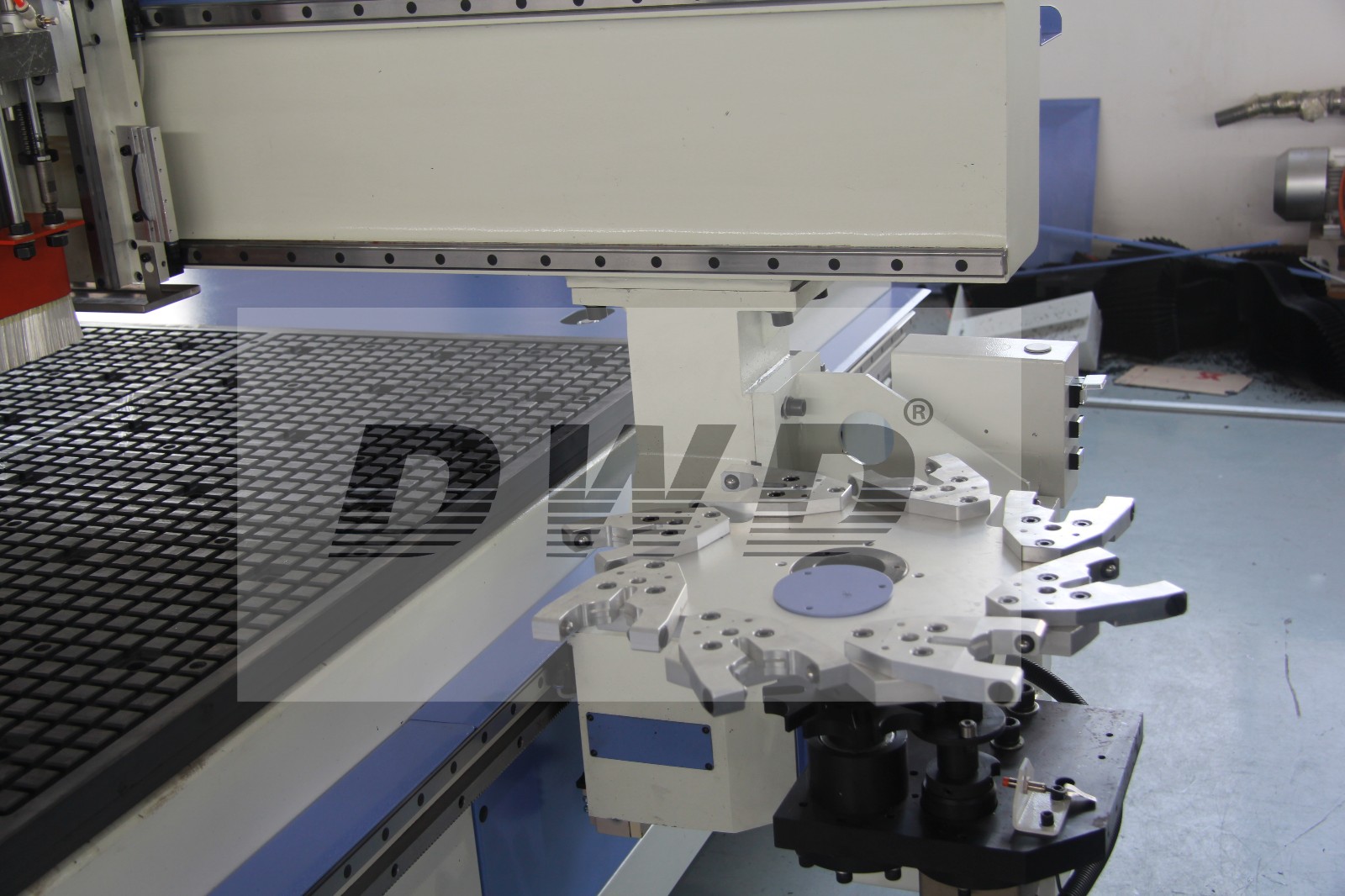

Tool magazine8-position rotary tool magazine
Calibration systemauto tool sensor
Working voltageAC220V/380V,50/60HZ,3PH
SoftwareAlphacam / artcam / router8 / ucancam / Vectric
Packing size3600*2260*2150mm
Gross wight1800KGS
